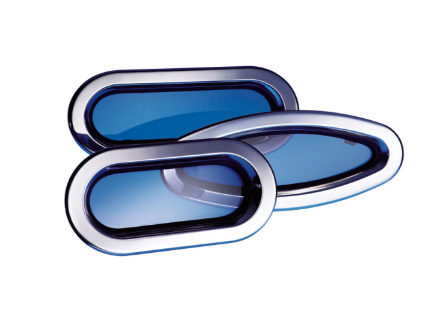

Lewmar portlight for boats in polished stainless steel with a system of handles and hinges that leave the methacrylate free of obstructions, giving it a clear view and a modern and clean appearance.

Counter frame in ABS plastic. Gray methacrylate.

 Mosquito nets are supplied as standard.

 Port lights and fixed lights come complete with fixings, they must be fitted to a flat surface with a maximum tolerance of +/- 1mm.

 Easily installed by clamping the sides of the cabinet between the inner and outer frame with screws provided, which fasten to the outer frame.

 Porthole opening is restricted on very thick hulls.

 The opening angle at 21 mm thickness of the hull is 165º.

  L393010262

1RE    B     191x367mm       171x347mm  10mm

€ 324.83

 L393770262

€ 446.29

7RE    A     191x425mm       171x405mm  10mm

  L393780262

€ 377.72

7RE    B     191x425mm       171x405mm  10mm

  L393820862

€ 377.72

  8     B     196x452mm                          10mm

 L393810862

€ 446.29

  8     A     196x452mm                          10mm

  L393020262

  0     A      176x323mm      156x303mm    8mm

€ 335.92

Quantity:

 L393120262

€ 291.04

  0     B      176x323mm      156x303mm   10mm

  L393180262

€ 359.61

  1     A      191x367mm      171x347mm    8mm

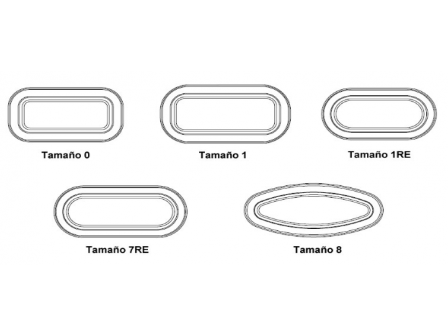

                        Size Mod  Outside-dim    Opening-dim    Glass    Mod A: Practicable/Mod B: FIjo

 L393170262

€ 383.86

1RE    A     191x367mm       171x347mm  10mm

Portlights

Polished Stainless Steel

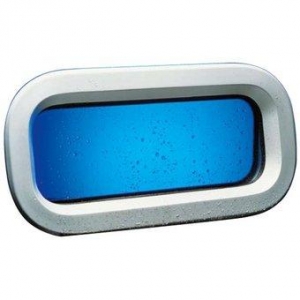

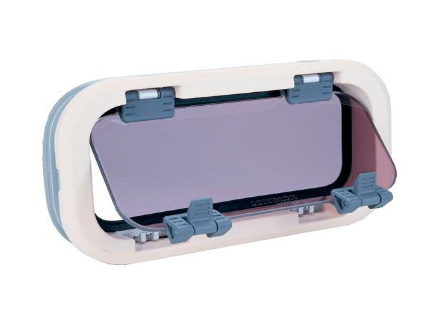

Portlight for Boat Mod. Standard Lewmar smoked gray methacrylate color. With an aluminum outer frame and a system of hinges and handles that leave the methacrylate free of obstructions. Counter frame in white or ivory ABS plastic.

Easy to install by fastening the sides of the booth between the inner and outer frame with screws as long as they are attached to the outer frame.


Can be installed with sealant or closed cell PVC tape.


White ABS plastic trim.

 L393020200

  0    A      176x323mm      156x303mm    8mm

€ 299.86

Quantity:

  L393120200

€ 320.98

Quantity:

  1    A      191x367mm      171x347mm    8mm

  L393120500

€ 320.98

  1    B      191x367mm       171x347mm   8mm

                        Size Mod  Outside-dim    Opening-dim    Glass     Mod: A-Blanco/ B-Marfil

 L393180500

1RE    B     191x367mm      171x347mm    8mm

€ 330.48

  L393220200

€ 394.37

  2    A      176x425mm       156x405mm    8mm

  L393220500

€ 394.37

  2    B      176x425mm       156x405mm    8mm

 L393320500

€ 492.89

  3    B      191x449mm       171x429mm   10mm

  L393320200

€ 492.89

  3    A      191x449mm       171x429mm   10mm

 L393420200

€ 583.70

  4    A      191x646mm       171x626mm     8mm

  L393420500

  4    B      191x646mm       171x626mm     8mm

€ 583.70

 L393440200

€ 595.34

 4R    A     195x708mm       175x688mm     8mm

 L393460200

€ 595.34

 4L    A     195x708mm       175x688mm     8mm

  L393780500

€ 443.01

 7RE   A    191x425mm       171x405mm    8mm

  L393520200

€ 512.18

  5    A     264x449mm       244x429mm   10mm

Portillos

Mod. STANDARD

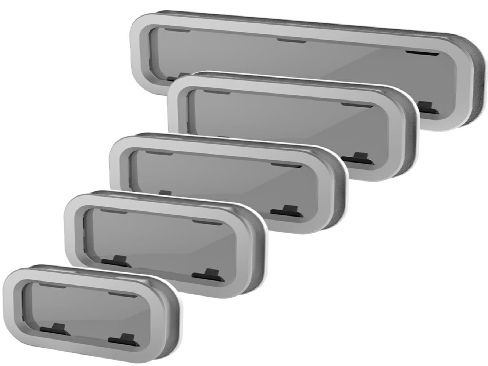

Portlight for Atlantic Lewmar Boat, made of aluminum with methacrylate (smoky gray) and silver anodized frame. Interior frame in aluminium. Friction hinges support the hatch open.

The inner and outer frames of the Portillo are made from anodized aluminum extrusion.

The snap-action handle applies the correct pressure evenly on the seal in the closed position. It cannot vibrate open when in the closed position.

The outer frame of the Portillo is designed to allow water to drain away.

Hinges offer a choice of open positions without knobs, braces or straps. These and other moving parts are corrosion free.

 L39140070

 40    B     200x480mm       180x460mm    8mm

€ 1001.35

 L39110090

 10    A      174x304mm      154x284mm    8mm

€ 635.45

Quantity:

 L39130090

€ 628.83

Quantity:

 30    A      200x400mm      180x380mm    8mm

  L39130070

€ 628.83

 30    B      200x400mm      180x380mm    8mm

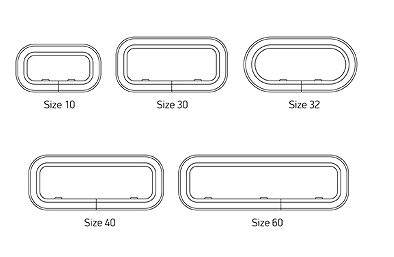

                        Size Mod  Outside-dim    Opening-dim    Glass     Mod A: Junta fina/Mod B: Junta gruesa

 L39140090

€ 1001.35

 40    A     200x480mm       180x460mm    8mm

Portillos

Mod. Atlantic
