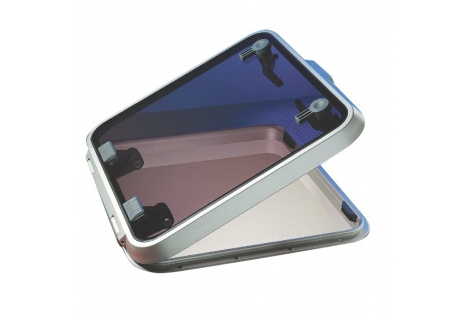

The low-profile hatch is smoothly styled and has a sleek appearance. The smaller ventilation hatches are suitable for any location on the deck of sailboats, while the larger sizes can be used as foredeck hatches on small to medium sized yachts.

■ Exterior handles allow hatch to be opened from deck if not locked

■ Low-profile hatches open up to 180° (round hatches open up to 170°)

■ Friction levers hold lid open in any position up to 95°

■ Anodized aluminum frame for corrosion resistance

■ Curved top frame profile for strength and modern styling

 L39930030

 30    A     397x527mm       327x457mm    8mm

€ 695.33

 L399300303

€ 695.33

 30    B     397x527mm       327x457mm    8mm

 L39940030

€ 729.10

 40    A     491x491mm       421x421mm    8mm

 L39944030

€ 769.78

 44    A     512x512mm       442x442mm    8mm

 L399400303

€ 729.10

 40    B     491x491mm       421x421mm    8mm

 L399440303

€ 769.78

 44    B     512x512mm       442x442mm    8mm

  L39950030

 50    A     447x577mm       377x507mm    8mm

€ 801.61

 L399500303

€ 801.61

 50    B     447x577mm       377x507mm    8mm

 L39954030

€ 842.89

 54    A     462x577mm       392x507mm    8mm

 L399600303

€ 875.05

 60    B     577x577mm       507x507mm   10mm

 L39960030

€ 875.07

 60    A     577x577mm       507x507mm   10mm

 L39965030

€ 908.91

 65    A   560x560/615mm  10mm/14mm   10mm

 L39900030

 00    A      281x281mm      211x211mm    8mm

€ 443.00

Quantity:

 L39903030

€ 425.61

 03    A      246x301mm      176x231mm    8mm

 L39910030

€ 461.10

 10    A      330x330mm      260x260mm    8mm

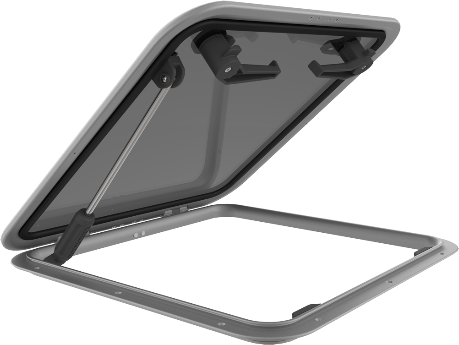

                        Size Mod  Outside-dim    Opening-dim    Glass    Mod A: Self supported/Mod B: With piston

 L39920030

€ 470.07

 20    A     272x417mm       202x347mm    8mm

Hatches

Low Profile

Medium Profile

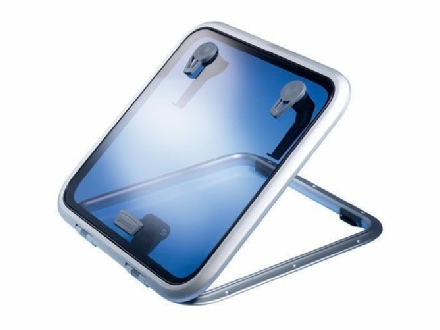

Ideal as a foredeck hatch on larger offshore yachts, the medium profile has thicker acrylic and deeper frame sections for increased strength and durability. It features Lewmar's exclusive sealing system, allowing for easy acrylic replacement. All while retaining the smooth, modern lines of the low-profile hatch.

■ Exterior handles allow hatch to be opened from deck if not locked

■ Friction levers hold lid open in any position up to 95°

■ Anodized aluminum frame for corrosion resistance

■ Curved top frame profile for strength and modern styling

■ Full range of spare parts available

  L39954020

 54    A      463x578mm      392x507mm   12mm

€ 923.54

  L39960020

€ 958.74

 60    A      578x578mm      507x507mm   12mm

  L39970020

€ 1353.64

 70    A     698x698mm       627x627mm   12mm

 L39977020

€ 2716.32

 77    A     770x770mm       699x699mm   12mm

  L39930020

 30    A      397x527mm      327x457mm   12mm

€ 757.44

Quantity:

  L39940020

€ 798.69

 40    A      492x492mm      421x521mm   12mm

  L39944020

€ 843.39

 44    A      513x513mm      442x442mm   12mm

                        Size Mod  Outside-dim    Opening-dim    Glass

  L39950020

€ 888.07

 50    A      448x578mm      377x507mm   12mm

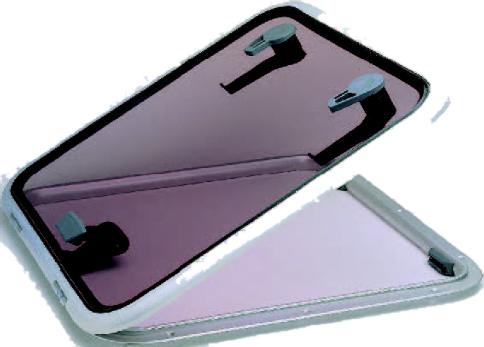

Ocean

● Friction levers hold lid open in any position up to 95°.

● Anodized aluminum frame for corrosion resistance.

● All sizes suitable for Area CE 2 (Deck, Body, Cab and Crossmember).

● Fit to a flat surface with a maximum tolerance of +/- 1mm.

● Clamping size in the use of the hinge section (M6 / 1/4").

● Clamping size for bottom frame using 5mm CSK screw No.10 UNC 2 BA.

● Flat base hatches cannot be used with trim kits or roller shades.

  L39630050

 30    A     391x521mm       322x452mm    8mm

€ 962.74

 L39630070

€ 962.74

 30    B     391x521mm       327x457mm    8mm

  L39640050

€ 1013.14

 40    A     485x485mm       416x416mm    8mm

 L39644050

€ 1055.27

 44    A     509x509mm       437x437mm    8mm

 L39640070

€ 1013.14

 40    B     485x485mm       421x421mm    8mm

  L39644070

€ 1055.27

 44    B     509x509mm       442x442mm    8mm

  L39650050

 50    A     444x574mm       372x502mm    8mm

€ 1129.39

 L39650070

€ 1129.39

 50    B     444x574mm       377x507mm    8mm

  L39660050

€ 1214.07

 60    A     574x574mm       502x502mm    8mm

 L39670050

€ 1658.93

 70    A     694x694mm       622x622mm   10mm

  L39660070

€ 1214.07

 60    B     574x574mm       507x507mm   10mm

  L39670070

€ 1658.93

 70    B     694x694mm       627x627mm   10mm

  L39610050

 10    A      324x324mm      255x255mm    8mm

€ 638.55

Quantity:

 L39610070

€ 638.55

 10    B      324x324mm      260x260mm    8mm

  L39620050

€ 651.20

 20    A      266x411mm      197x342mm    8mm

                        Size Mod  Outside-dim    Opening-dim    Glass    Mod A: Flat base/Mod B: Base with flange

  L39620070

€ 651.20

 20    B      266x411mm      202x347mm    8mm
